Microwave Sensors

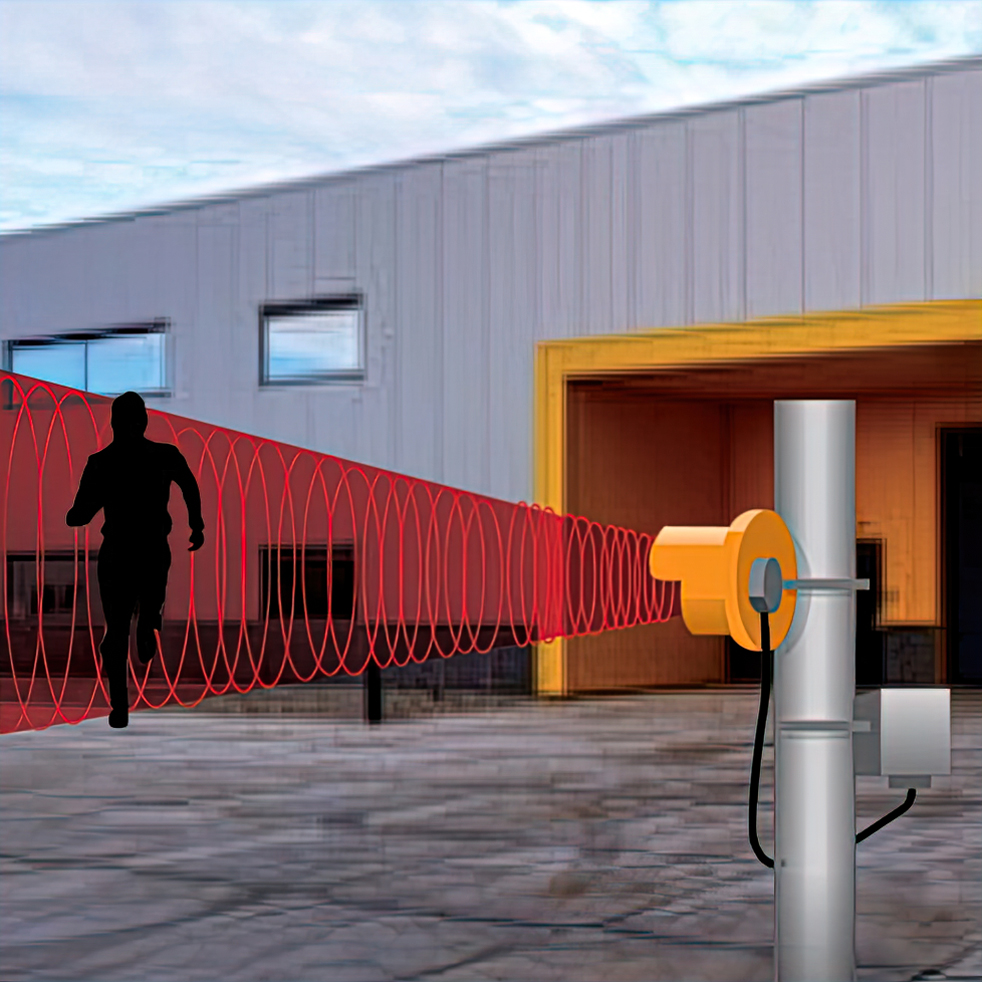

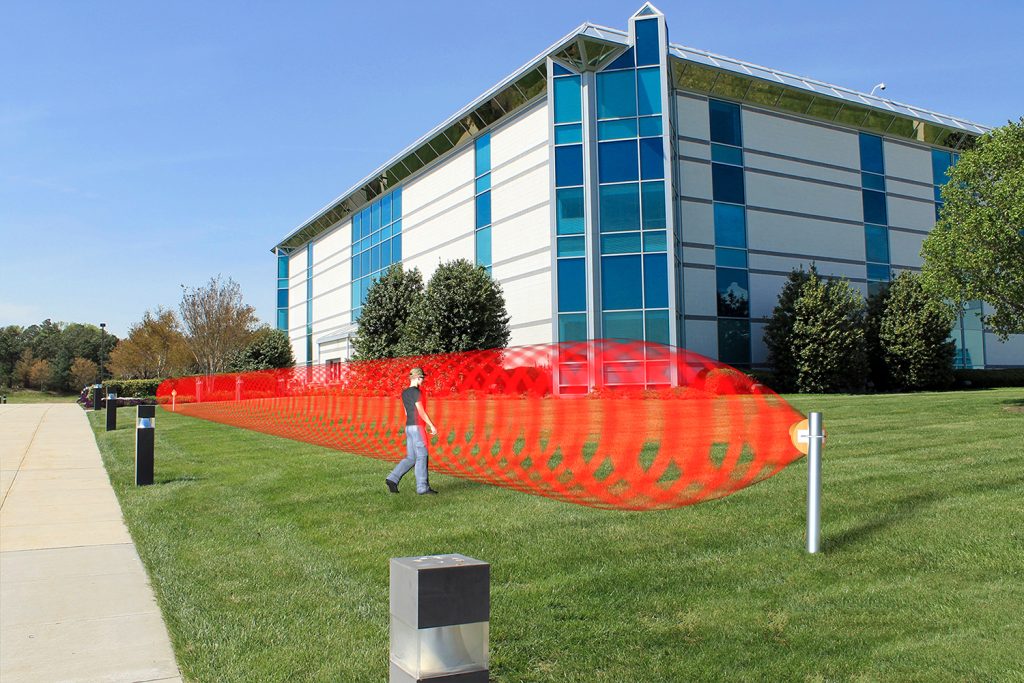

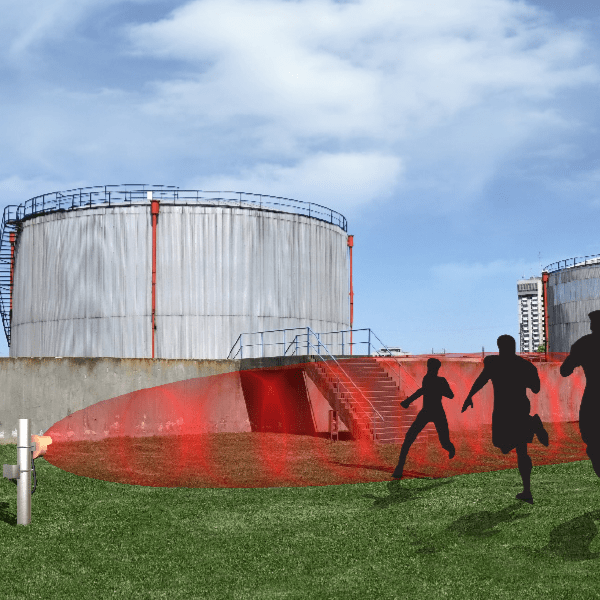

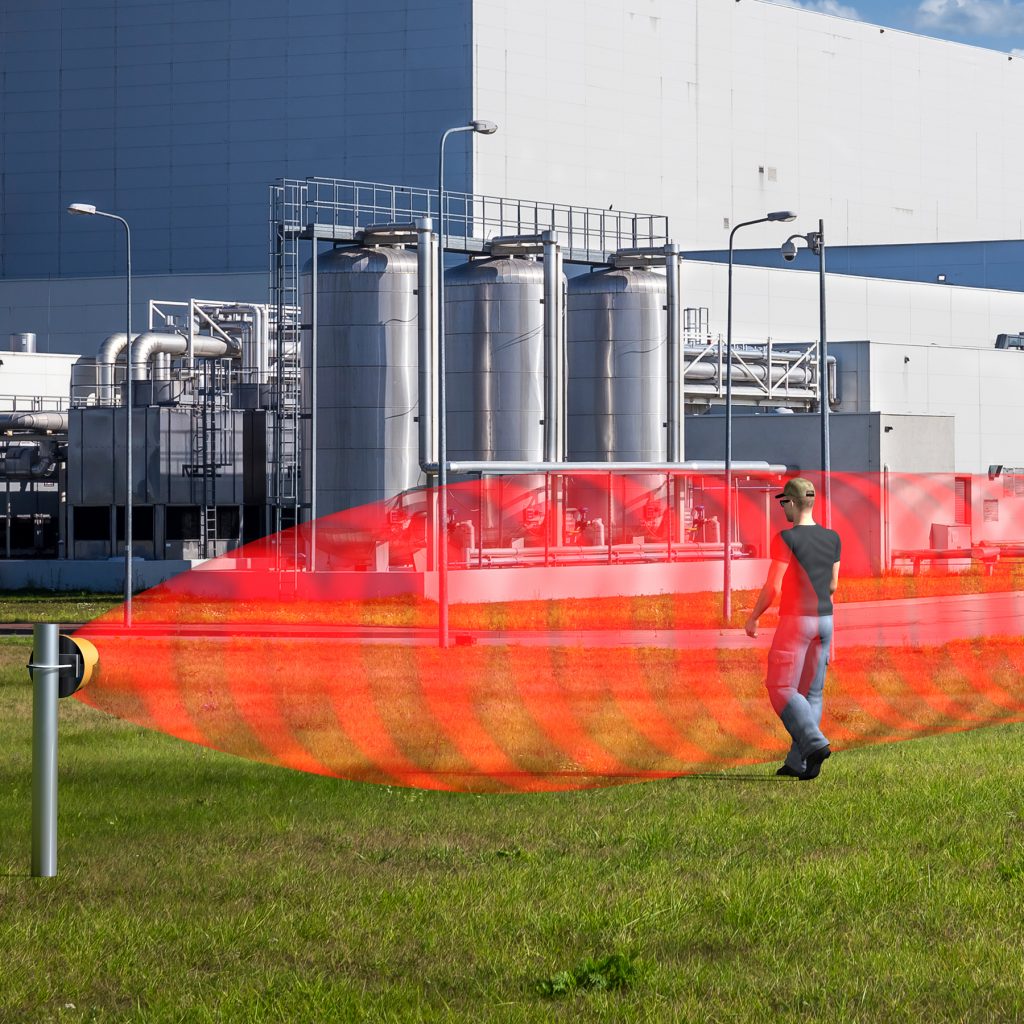

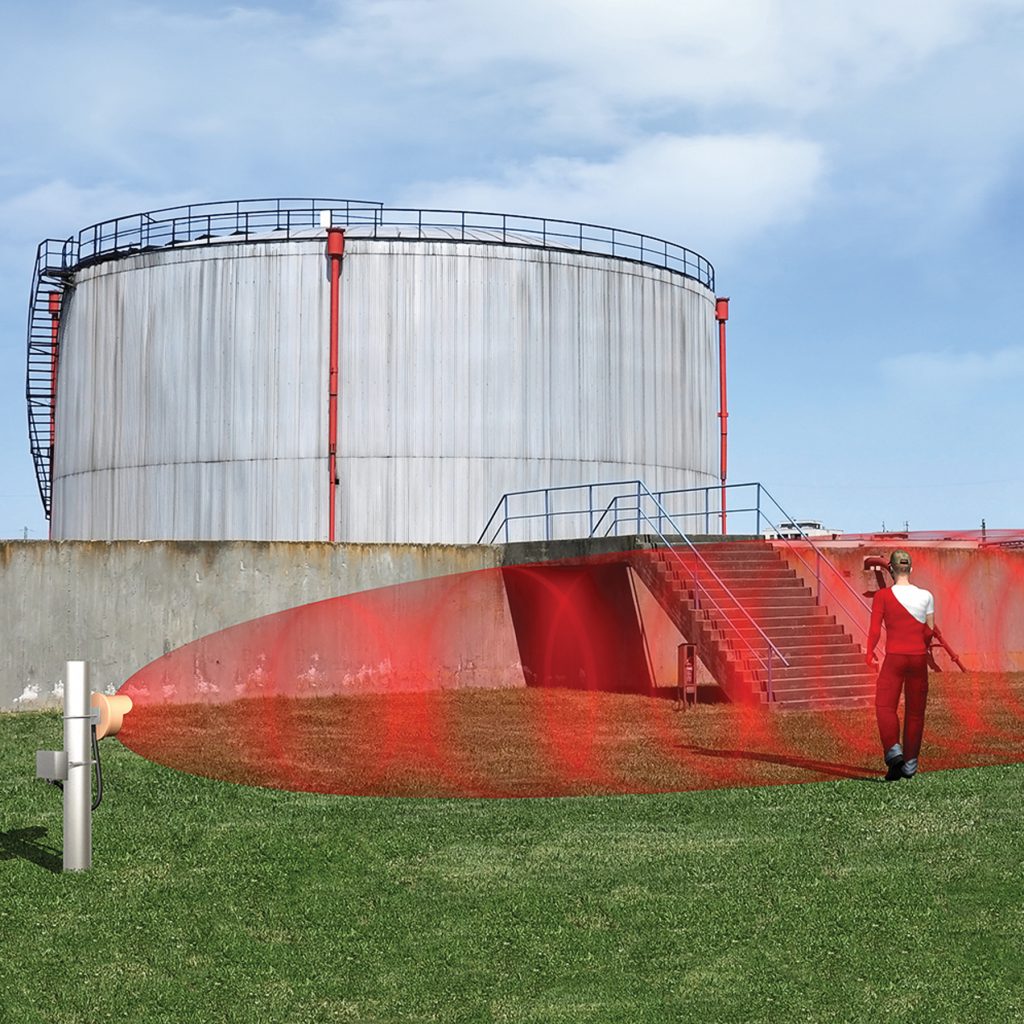

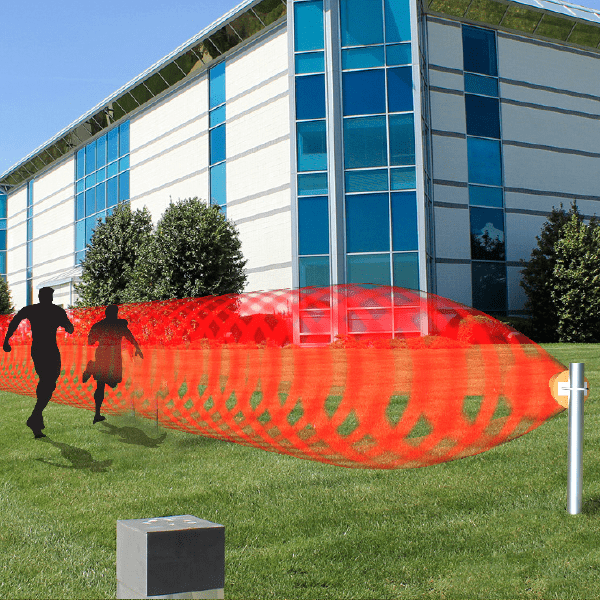

Our microwave sensors detect intrusion attempts by generating an electromagnetic (RF) field and creating an invisible volumetric detection zone. When an intruder enters this detection zone, changes to the field are registered and an alarm occurs.
digital

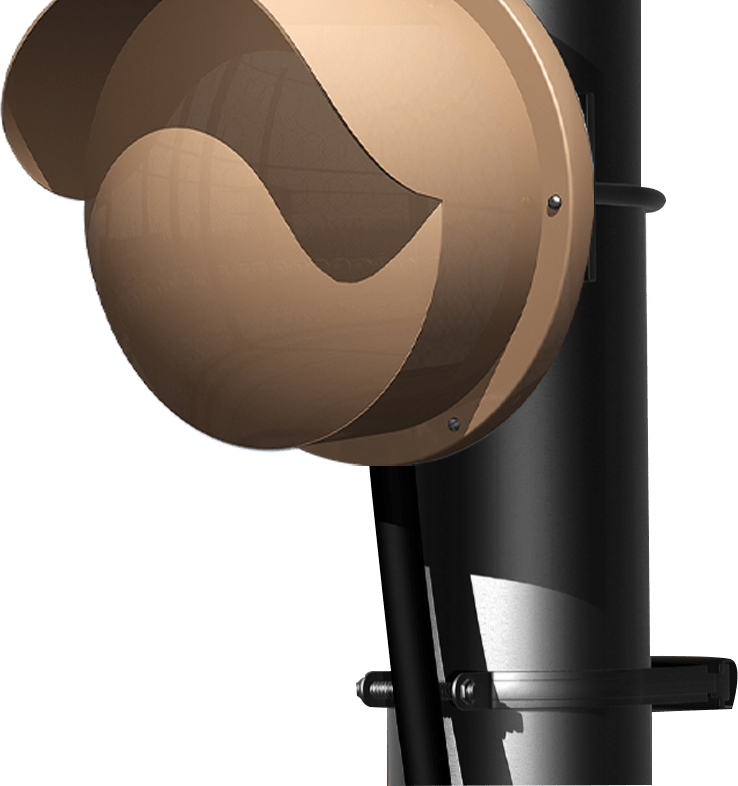

Microwave sensors
Our microwave sensors detect intrusion attempts by generating an electromagnetic (RF) field and creating an invisible volumetric detection zone. When an intruder enters this detection zone, changes to the field are registered and an alarm occurs.
Our microwave sensors are easy to install, provide high probability of detection, low nuisance alarms and resistance to rain, fog, wind, dust, falling snow and temperature extremes.
Is a Microwave Sensor right for me?
- Clear line of sight
- Flat ground
- No flowing or pooling water
Power Over Ethernet (POE)
Southwest Microwave offers a range of IP-based POE microwave sensors to address our customers’ evolving site infrastructure requirements. Each INTREPID POE sensor operates as a secure element that seamlessly integrates with third-party IP/POE-based security devices such as cameras and access control systems for greater system design flexibility, reduced installation costs, decreased power consumption, and convenient local or remote monitoring and servicing.
CONTACT US
INTREPID Model 316-POE-S
INTREPID™ Model 316-POE-S (K-band) is a CE-rated volumetric IP-based perimeter detection sensor for fencelines, open areas, gates, entryways, walls and rooftop applications. Combining Southwest Microwave’s field-proven detection performance with advanced embedded Digital Signal Processing to discriminate between intrusion attempts and environmental disturbances, Model 316-POE-S mitigates risk of site compromise while preventing nuisance alarms.
Designed for maximum protection against sabotage, Model 316-POE-S is a high-security detection solution for security-sensitive sites. Heavy-duty components and packaging plus integrated radome tamper switches impede physical abuse. Superior EMI/RFI shielding protects sensor electronics against external electromagnetic or radio frequency interference.
KEY FEATURES
- Range: 122 m (400 ft)
- Advanced Digital Signal Processing (DSP) for High PD / Low NAR
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- User-Friendly Embedded Browser-Based Setup
- Superior EMI / RFI Shielding and Surge Protection
- Withstands Mechanical Abuse and Climatic Extremes
- Integration with IP / POE-Enabled Security Devices and Cameras
- IP-based controller with relays
INTREPID Model 334-POE-S
INTREPID™ Model 334-POE-S (X-band) is a high-security volumetric perimeter detection sensor for fencelines, open areas, walls, gates, entryways, and rooftop security applications. Combining field-proven detection performance with advanced Digital Signal Processing algorithms to discriminate between intrusion attempts and environmental disturbances, Model 334-POE-S mitigates risk of site compromise while preventing nuisance alarms.
This IP-based solution integrates with new or existing TCP/IP networks via a single Ethernet cable, providing installation and maintenance convenience, system design flexibility and lower infrastructure costs. Model 334-POE-S Transmitters and Receivers feature an embedded browser-based Installation Service Tool (IST) for local or remote setup on an authorized PC or mobile device. Units can be dual, triple or quad-stacked with Model 336-POE K-Band Digital Microwave Links to fortify ultra-high security applications with risk of prone crawling or bridging attack. Hi-rel options are also available.
KEY FEATURES
- Range: 183 m (600 ft)
- Advanced Digital Signal Processing for High PD / Low NAR
- Unique Parabolic Dish & Antenna Design for Precise Beam Control
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- Superior EMI / RFI Shielding and Surge Protection
- Integration With IP / POE-Based Security Devices And Cameras
- Economical Plug-and-Deploy Installation
- User-Friendly Configuration via PC or Mobile Device
- Alarm Monitoring via Server-Based Controller or Third Party HLI
INTREPID Model 336-POE-S
INTREPID™ Model 336-POE-S (K-band) is a volumetric IP-based perimeter detection sensor for fencelines, open areas, gates, entryways, walls and rooftop applications. Combining Southwest Microwave’s field-proven detection performance with advanced embedded Digital Signal Processing to discriminate between intrusion attempts and environmental disturbances, Model 336-POE-S mitigates risk of site compromise while preventing nuisance alarms.
Designed for maximum protection against sabotage, Model 336-POE-S is a high-security detection solution for security-sensitive sites. Heavy-duty components and packaging plus integrated radome tamper switches impede physical abuse. Superior EMI/RFI shielding protects sensor electronics against external electromagnetic or radio frequency interference. Six crystal-controlled, field-selectable modulation channels with narrow band filtering prevent interference between sensors.
KEY FEATURES
- Range Up To 457 m (1500 ft)
- Unique Parabolic Dish & Antenna Design for Precise Beam Control
- Advanced Digital Signal Processing (DSP) for High PD / Low NAR
- User-Friendly Configuration Via PC or Mobile Device
- Economical Plug-and-Deploy Installation
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- Superior EMI / RFI Shielding and Surge Protection
- Integration With IP / POE-Enabled Security Devices and Cameras
- Alarm Monitoring via Server-Based Controller or Third Party HLI

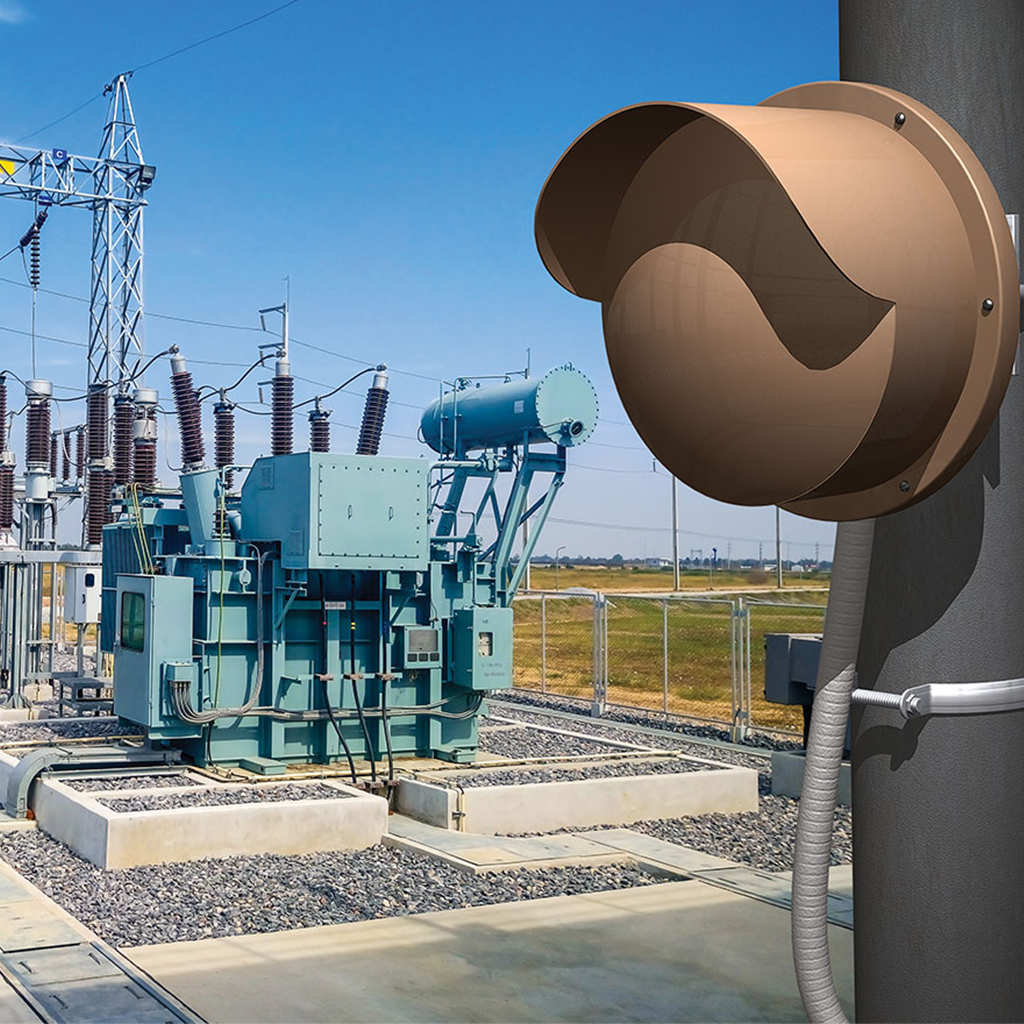

INTREPID Model 390
INTREPID™ Model 390 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 390 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 390 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 15 to 61 m (50 to 200 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond A Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
DOCUMENTATION

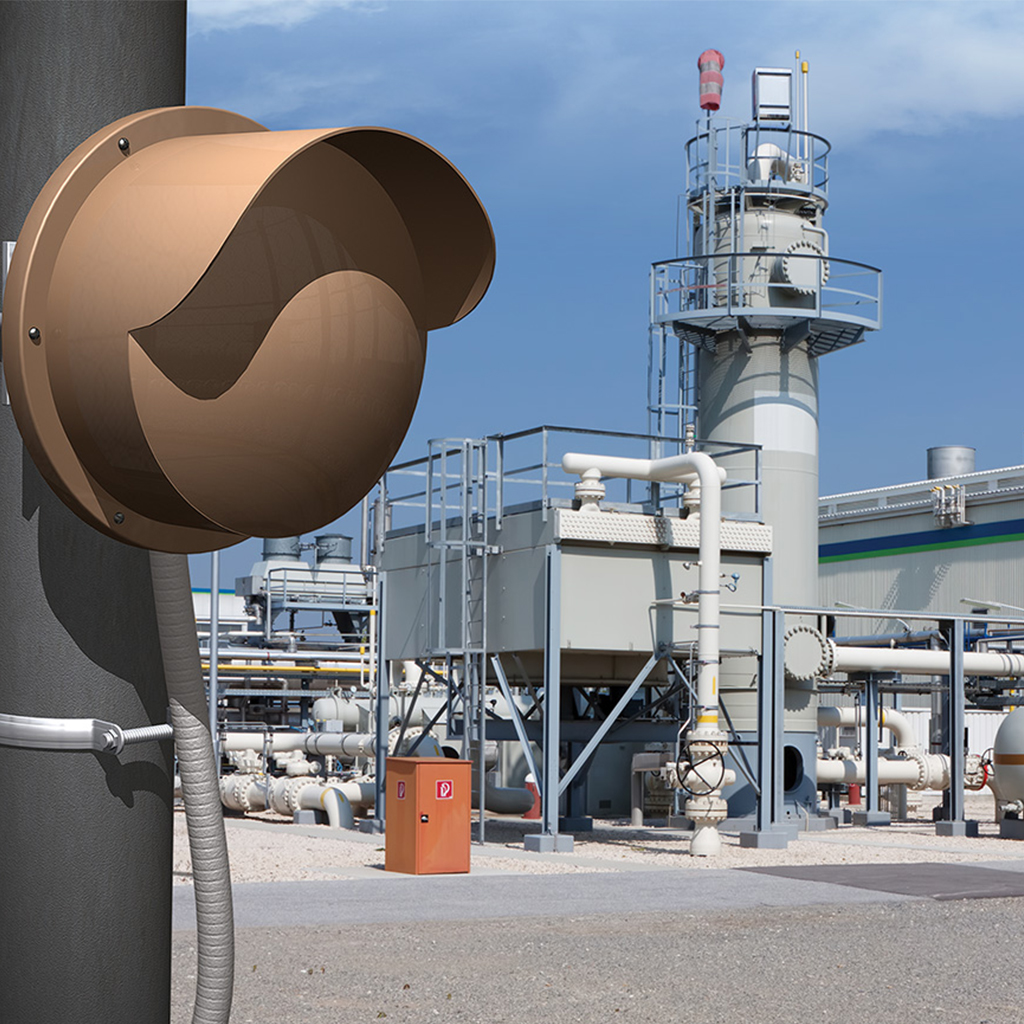

INTREPID Model 395
INTREPID™ Model 395 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 395 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 395 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 30.5 to 122 m (100 to 400 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond a Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
DOCUMENTATION
digital
Our broad range of digital microwave intrusion detection links feature advanced Digital Signal Processing (DSP) to optimize detection of intrusion attempts while preventing nuisance alarms. Digital sensors offer user-friendly software setup, Fresnel Suppression Algorithms to further minimize nuisance alarms by suppressing outer field disturbances caused by nearby fence vibration or vehicle traffic, and a unique early-warning Path Alarm to alert operators to changes in the environment that could affect sensor performance.

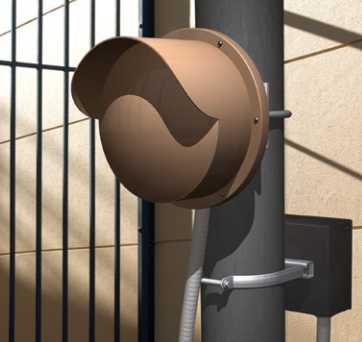

INTREPID MicroWave 330
INTREPID™ MicroWave 330 (K-band) is a volumetric perimeter detection system for fencelines, open areas, gates, entryways, walls, and rooftop applications. Based on Southwest Microwave’s field-proven microwave detection technology, it reliably detects human intruders with minimal environmental nuisance alarms. Advanced digital signal processing (DSP) allows continuous monitoring of intrusion alarm and tamper switch status, received signal strength, and detection parameters.
MicroWave 330’s tethered mode of operation optimizes sensor control. Its on-board synchronization circuitry eliminates external interference and allows multiple MicroWave 330s and Southwest Microwave transceivers to operate without mutual interference between sensors. Units can be stacked for ultra-high security applications. As part of the new-generation INTREPID™ family, MicroWave 330 networks seamlessly with the MicroPoint™ II Fence Detection Sensor and MicroTrack™ II Buried Cable Detection Sensor using a common, open architecture communications protocol.
KEY FEATURES
- Range: 457 m (1500 ft)
- Single Platform Networking Capabilities
- Digital Signal Processing for High PD / Low NAR
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- Software-Controlled Setup
- Built-in Synchronization Prevents Interference Between Sensors
- Tethered Mode for Optimal Sensor Control and Interference Resistance
CONTACT US
INTREPID Model 316
INTREPID™ Model 316 (K-band) is a CE-rated standalone volumetric perimeter detection sensor for fencelines, open areas, gates, entryways, walls and rooftop applications. The sensor employs proprietary Digital Signal Processing algorithms to classify disturbances to the detection field in real time to optimize detection performance. Intruders walking, jumping or crawling through the field are identified and detected, while common environmental disturbances are suppressed, preventing nuisance alarms.
The fully-shielded electronics module and precisely-focused parabolic antenna of Model 316 are mounted on a rugged metal baseplate and covered by a molded ABS radome for all weather operation. Heavy-duty metal pole-mounting bracket with steel swivel mount permits precise setup and provides firm lock against movement.
KEY FEATURES
- Range: 122 m (400 ft)
- Rugged Construction Withstands Mechanical Abuse and Harsh Climatic Extremes
- Embedded Digital Signal Processing (DSP) for High PD / Low NAR
- Software-Controlled Setup
- Low Power Consumption
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- Monitoring via On-Board Form-C Relay Alarm Outputs
INTREPID Model 334
INTREPID™ Model 334 (X-band) is a standalone volumetric perimeter sensor for fencelines, open areas, gates, entryways, walls and rooftop applications. Its advanced embedded Digital Signal Processing (DSP) capabilities successfully discriminate between intrusion attempts and environmental disturbances. A true parabolic antenna assures long range operation, superior beam control and predictable Fresnel zones and the advanced receiver design increases detection probability by alarming on partial or complete beam interruption, increase / decrease in signal level or jamming by other transmitters.
Designed for maximum protection against physical tampering and harsh environmental conditions, Model 334 features heavy-duty components and packaging, integrated radome tamper switches and optional steel enclosures. Standalone configuration and on-board relay alarm outputs for monitoring deter the risk of hacking or other digital compromise faced by networked devices. Units can be dual, triple or quad-stacked with Model 336 K-Band Digital Microwave Links to fortify ultra-high security applications with risk of prone crawling or bridging attack.
KEY FEATURES
- Range: 183 m (600 ft)
- Embedded Digital Signal Processing (DSP) for High PD / Low NAR
- Software-Controlled Setup
- Low Power Consumption
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- Superior EMI / RFI Shielding And Surge Protection
- Extended Burn-in And Temperature Testing
INTREPID Model 336
INTREPID™ Model 336 (K-band) is a standalone volumetric perimeter detection sensor for fencelines, open areas, gates, entryways, walls and rooftop applications. Based on Southwest Microwave’s field-proven microwave detection technology, advanced embedded Digital Signal Processing (DSP) discriminates between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
Designed for maximum protection against sabotage, Model 336 is a high-security solution for security-sensitive sites such as nuclear plants, correctional facilities or government / military installations. Heavy-duty components and packaging, integrated radome tamper switches and optional steel enclosures for external wiring and connections prevent physical abuse. Integrated EMI / RFI shielding protects sensor electronics against external electromagnetic or radio frequency interference. The unit’s standalone configuration and on-board relay alarm outputs for monitoring eliminate the risk of hacking or other digital compromise faced by networked devices.
KEY FEATURES
- Range: 457 m (1500 ft)
- Rugged Construction Withstands Mechanical Abuse and Harsh Climates
- Embedded Digital Signal Processing For High Pd / Low NAR
- Software-Controlled Setup
- Low Power Consumption
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- Monitoring via On Board Form-C Relay Alarm Outputs
- Superior EMI / RFI Shielding And Surge Protection
INTREPID Model 390
INTREPID™ Model 390 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 390 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 390 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 15 to 61 m (50 to 200 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond A Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
DOCUMENTATION
INTREPID Model 395
INTREPID™ Model 395 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 395 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 395 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 30.5 to 122 m (100 to 400 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond a Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
DOCUMENTATION
TRANSCEIVERS
INTREPID Model 390
INTREPID™ Model 390 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 390 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 390 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 15 to 61 m (50 to 200 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond A Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
INTREPID Model 395
INTREPID™ Model 395 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 395 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 395 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 30.5 to 122 m (100 to 400 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond a Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
Model 385
Model 385 K-Band Outdoor Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Sensitive, field-adjustable detection circuitry is capable of detecting a human intruder while walking running, or crawling on hands and knees at a distance up to 122 m (400 ft) from the transceiver.
A patented Range Cutoff (RCO) Circuit positively rejects all microwave targets beyond a preselected range. This unique capability makes Model 385 immune to alarms from any object outside the RCO distance, even very large microwave targets such as semitrailers, trees, trains or aircraft. Model 385 is also equipped with a patented Zero-Range Suppression (ZRS) Circuit which reduces the amplitude of any microwave target at very close range. This circuit dramatically reduces nuisance alarms from rain, vibration, birds and windblown objects. Neither the RCO nor the ZRS circuit affects detection pattern.
KEY FEATURES
- 30 to 122 m (100 to 400 ft) Range
- Resistant to Radar Interference
- Patented Range Cut-Off Circuit
- Patented Zero-Range Suppression Circuit
- Built-In Multiplex System for Multiple Sensor Operation
- Plug-In Test Meter for Quick Set-up
DOCUMENTATION
Model 380
Model 380 K-Band Outdoor Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Sensitive, field-adjustable detection circuitry is capable of detecting a human intruder while walking, running or crawling on hands and knees at a distance up to 61 m (200 ft) from the transceiver. A patented Range Cutoff (RCO) circuit positively rejects all microwave targets beyond a preselected range. This unique capability makes Model 380 immune to alarms from any object outside the RCO distance, even very large microwave targets such as semitrailers, trees, trains or aircraft.
Model 380 is also equipped with a patented Zero-Range Suppression (ZRS) Circuit which reduces the amplitude of any microwave target at very close range, dramatically reducing nuisance alarms from rain, vibration, birds and windblown objects. Neither the RCO nor the ZRS circuit affects detection pattern.
KEY FEATURES
- 15 to 61 m (50 to 200 ft) Range
- Resistant to Radar Interference
- Patented Range Cut-Off Circuit
- Patented Zero-Range Suppression Circuit
- Built-In Multiplex System for Multiple Sensor Operation
- Plug-In Test Meter for Quick Set-up
DOCUMENTATION

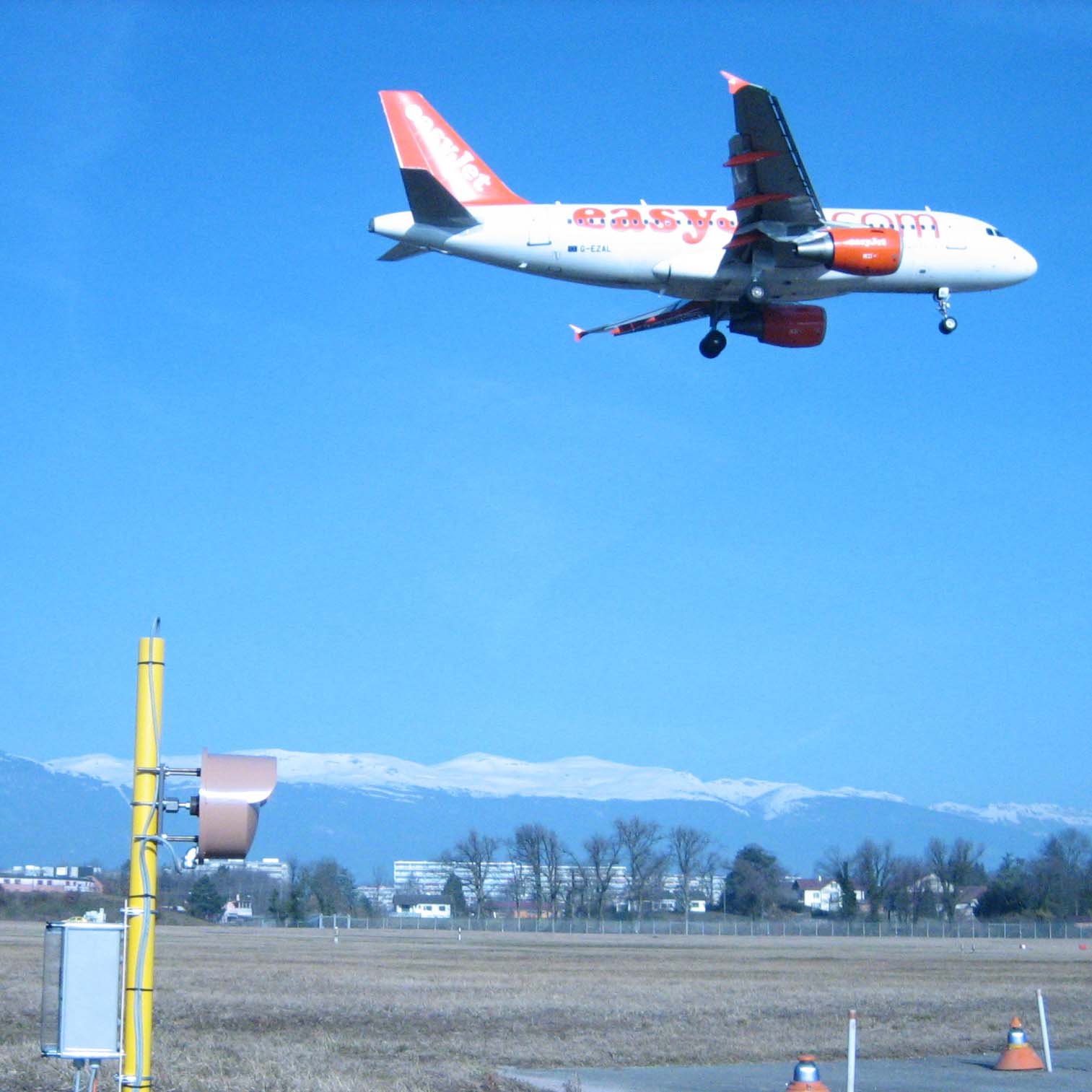

AirField Safety
Southwest Microwave’s Stop Bar Control Sensors (K-band) can be combined with traditional aircraft stop bar safety systems to enhance reliable, effective detection of aircraft or vehicle movement between taxiway and active runway.

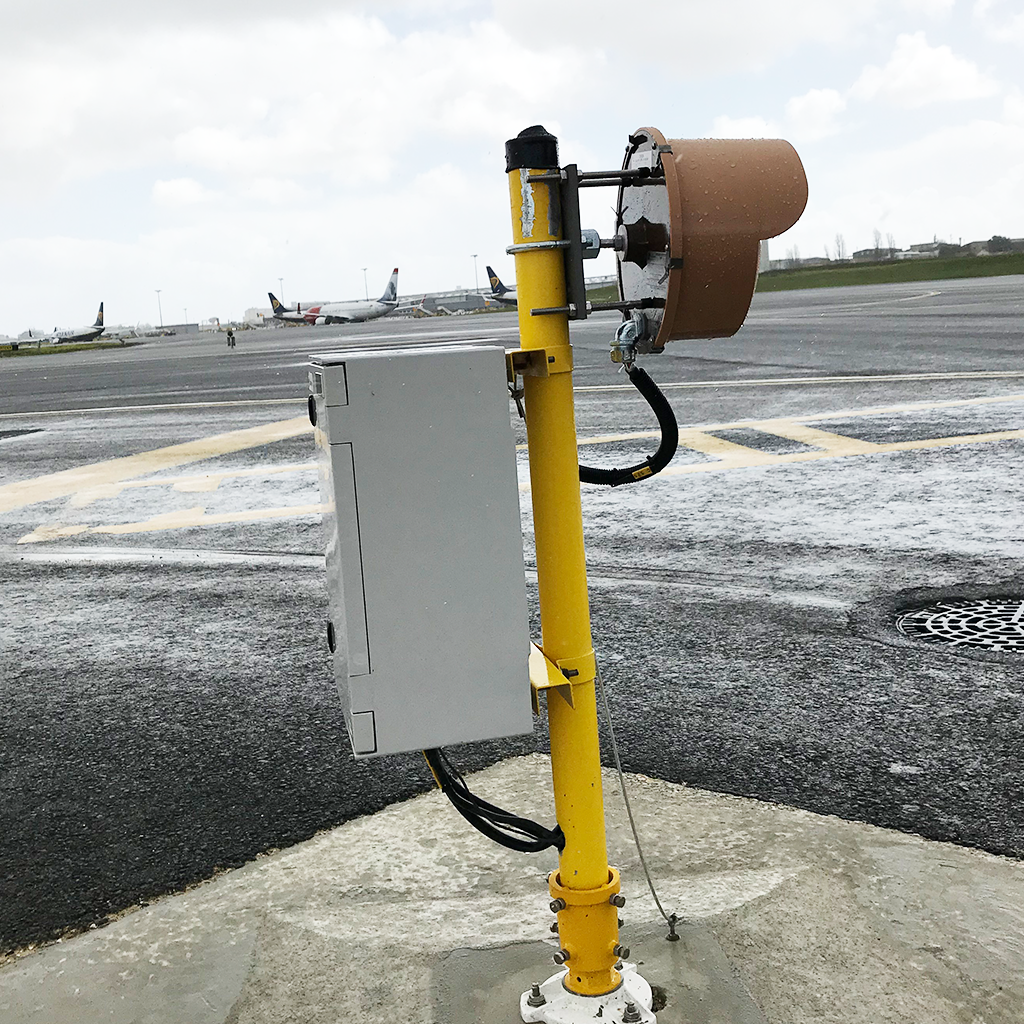

Model 316-33470 Stop Bar Sensor (CE)
Southwest Microwave’s Model 316-33470 Stop Bar Control Sensor (K-band) can be combined with traditional aircraft stop bar safety systems to enhance reliable, effective detection of aircraft or vehicle movement between taxiway and active runway. Operating at K-band frequency, this all-weather bi-static microwave link is engineered for applications where external radio frequency (RF) radiation is prevalent, offering maximum resistance to RF interference (RFI). Additionally, Model 316-33470 features board-level EMI/RFI shielding of surface-mounted electronics and a unique EMI/RFI shielded radome to maximize protection against external RF radiation, making it an exceptional on-ground traffic solution.
Model 316-33470 replaces Model 316-33457 which has reached product retirement. Please refer to Model 316-33474 for the FCC certified version.
KEY FEATURES
- 244 m (800 ft) Range
- CE Certified
- Above-Ground Sensor Simplifies Installation and Maintenance
- Adjustable Alarm Hold Time
- Monitoring via On-Board Form-C Relay Alarm Outputs
- Advanced EMI / RFI Shielding
- On-Board Fuse and Transient Protection Against Lightning and Power Surges
- Six Field Selectable Modulation Channels
DOCUMENTATION
Model 316-33474 Stop Bar Sensor (FCC)
The Model 316-33474 Stop Bar Control Sensor (K-band) can be combined with traditional aircraft stop bar safety systems to enhance reliable, effective detection of aircraft or vehicle movement between taxiway and active runway. Operating at K-band frequency, this all-weather bi-static microwave link is engineered for applications where external radio frequency (RF) radiation is prevalent, offering maximum resistance to RF interference (RFI). Additionally, Model 316-33474 features board-level EMI / RFI shielding of surface-mounted electronics and a unique EMI / RFI shielded radome to maximize protection against external RF radiation, making it an exceptional on-ground traffic solution.
Please refer to Model 316-33470 for the CE-rated version.
KEY FEATURES
- 244 m (800 ft) Range
- FCC Certified
- Above-Ground Sensor Simplifies Installation and Maintenance
- Adjustable Alarm Hold Time
- Monitoring via On-Board Form-C Relay Alarm Outputs
- Advanced EMI/RFI Shielding
- On-Board Fuse and Transient Protection Against Lightning and Power Surges
- Six Field-Selectable Modulation Channels
DOCUMENTATION
Hi-Rel units are fitted with an RFI/EMI shielded radome, undergo an extended burn-in cycle at 52° C (125° F) and are temperature tested from -40° to 66° C (-40° to 150° F). A position-locking, noncorrosive, anodized aluminum and stainless steel mounting bracket reinforce against movement. Factory installed Radome Latch Kits enable simplified tamper testing and sensor configuration / servicing.
DOCUMENTATION
EXPLOSIONPROOF SENSORS
Explosionproof Microwave sensors offers reliable, explosionproof-rated intrusion detection in the presence of flammable, combustible or ignitable materials. The sensor is designed to operate at oil refineries, chemical and petrochemical plants, storage facilities and other sites where hazardous materials are handled, processed or stored.
Model 310B-33456 Explosionproof
Model 310B-33456, operating at K-band frequency, offers reliable intrusion detection in the presence of flammable, combustible or easily ignitable materials. The sensor is specifically designed to operate at oil refineries, chemical and petrochemical plants, petroleum or chemical storage facilities and other sites where hazardous materials are handled, processed or stored.
Each 310B-33456 transmitter and receiver is packaged in a weatherproof, explosionproof, flameproof enclosure with front access to
controls and test points and maximum corrosion resistance. The unit’s solid state electronics and antenna are mounted in an explosionproof housing which meets the ratings required for hazardous areas. The housing and brackets are suitable for corrosive environments such as oil refineries, chemical and petrochemical plants, petroleum or chemical storage facilities, and where hazardous substances are handled.
KEY FEATURES
- 100 m (328 ft) Range
- Explosionproof and Flameproof Rated NEC:
- Class I (Div. 1&2, Groups B,C,D), Class II (Div. 1&2, Groups E,F,G), Class III
- CSA Standard C22.2 No. 30
ATEX DIRECTIVE 94/9/EC
IECEx: IEC 60079-1/IEC 60079-31
NEMA 4X, IP66
UL Standard 1203
DOCUMENTATION
hi-rel
High-Reliability (Hi-Rel) Volumetric Microwave Sensors couple Southwest Microwave’s field-proven microwave detection performance with comprehensive temperature testing and ruggedized componentry to maximize resistance to harsh conditions. These sensors are ideal for the fortification of nuclear power plants, government laboratories and military installations.
INTREPID Model 334-33465
INTREPID™ Model 334-33465 (X-band) is a high-security standalone volumetric perimeter sensor for maximum-security sites such as nuclear power plants, government laboratories and military installations. Combining Southwest Microwave’s field proven detection performance with advanced embedded Digital Signal Processing (DSP) to successfully discriminate between intrusion attempts and environmental disturbances, this Hi-Reliability sensor mitigates risk of site compromise and prevents nuisance alarms. An extended burn-in cycle of five days at 125° F (52° C) and full temperature testing from -40° to +150° F (-40° to +66° C) maximize reliability.
Model 334-33465 features six crystal-controlled, field-selectable modulation channels with narrow-band filtering to prevent interference between sensors. Units can be dual, triple or quad-stacked with Model 336-33464 K-Band Digital Microwave Links to fortify ultra-high security applications with risk of prone crawling or bridging attack. A POE version is also available (Model 334-33468-POE-S). Please refer to the data sheet for details.
KEY FEATURES
- 183 m (600 ft) Range
- Embedded Digital Signal Processing for High PD / Low NAR
- Software-Controlled Setup
- Fresnel Suppression Algorithms Suppress Outer Field Disturbances
- Superior RFI / EMI Shielding and Surge Protection
- Extensive Burn-In and Temperature Testing
- Ruggedized Against Mechanical Abuse and Climatic Extremes
INTREPID Model 334-33468-POE-S
INTREPID™ Model 334-POE-S (X-band) is a high-security volumetric perimeter detection sensor for fencelines, open areas, walls, gates, entryways, and rooftop security applications. Combining field-proven detection performance with advanced Digital Signal Processing algorithms to discriminate between intrusion attempts and environmental disturbances, Model 334-POE-S mitigates risk of site compromise while preventing nuisance alarms.
This IP-based solution integrates with new or existing TCP/IP networks via a single Ethernet cable, providing installation and maintenance convenience, system design flexibility and lower infrastructure costs. Model 334-POE-S Transmitters and Receivers feature an embedded browser-based Installation Service Tool (IST) for local or remote setup on an authorized PC or mobile device. Units can be dual, triple or quad-stacked with Model 336-POE K-Band Digital Microwave Links to fortify ultra-high security applications with risk of prone crawling or bridging attack. Hi-rel options are also available.
KEY FEATURES
- Range: 183 m (600 ft)
- Advanced Digital Signal Processing (DSP) for High PD / Low NAR
- Fresnel Suppression Algorithms Reduce Outer Field Disturbances
- User-Friendly Embedded Browser-Based Setup
- Superior EMI / RFI Shielding and Surge Protection
- Withstands Mechanical Abuse and Climatic Extremes
- Integration with IP / POE-Enabled Security Devices and Cameras
- IP-based controller with relays
INTREPID Model 336-33464
INTREPID™ Model 336-33464 (K-band) is a high-security standalone volumetric perimeter sensor for maximum-security sites such as nuclear power plants, government laboratories and military installations. Combining field-proven Southwest Microwave detection performance with advanced embedded Digital Signal Processing (DSP) to successfully discriminate between intrusion attempts and environmental disturbances, this Hi-Reliability sensor mitigates risk of site compromise and prevents nuisance alarms.
Model 336-33464 features six crystal-controlled, field-selectable modulation channels with narrow-band filtering to prevent interference between sensors. Units can be dual, triple or quad-stacked with Model 334-33465 Digital Microwave Links for optimal protection against prone crawling or bridging attack. A POE version is also available (Model 336-33469-POE-S). Please refer to the data sheet for details.
KEY FEATURES
- 457 m (1500 ft) Range
- Embedded Digital Signal Processing for High PD / Low NAR
- Software-Controlled Setup
- Fresnel Suppression Algorithms Suppress Outer Field Disturbances
- Superior RFI / EMI Shielding and Surge Protection
- Extensive Burn-In and Temperature Testing
- Ruggedized Against Mechanical Abuse and Climatic Extremes
INTREPID Model 336-33464-POE-S
INTREPID™ Model 336-33464 (K-band) is a high-security standalone volumetric perimeter sensor for maximum-security sites such as nuclear power plants, government laboratories and military installations. Combining field-proven Southwest Microwave detection performance with advanced embedded Digital Signal Processing (DSP) to successfully discriminate between intrusion attempts and environmental disturbances, this Hi-Reliability sensor mitigates risk of site compromise and prevents nuisance alarms.
Model 336-33464 features six crystal-controlled, field-selectable modulation channels with narrow-band filtering to prevent interference between sensors. Units can be dual, triple or quad-stacked with Model 334-33465 Digital Microwave Links for optimal protection against prone crawling or bridging attack. A POE version is also available (Model 336-33469-POE-S). Please refer to the data sheet for details.
KEY FEATURES
- 457 m (1500 ft) Range
- Embedded Digital Signal Processing for High PD / Low NAR
- Software-Controlled Setup
- Fresnel Suppression Algorithms Suppress Outer Field Disturbances
- Superior RFI / EMI Shielding and Surge Protection
- Extensive Burn-In and Temperature Testing
- Ruggedized Against Mechanical Abuse and Climatic Extremes
INTREPID Model 395
INTREPID™ Model 395 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 395 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 395 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 30.5 to 122 m (100 to 400 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond a Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
INTREPID Model 390
INTREPID™ Model 390 K-Band Advanced Digital Microwave Transceiver provides reliable three-dimensional protection in outdoor environments. Advanced Digital Signal Processing (DSP) algorithms successfully discriminate between intrusion attempts and environmental disturbances, mitigating risk of site compromise while preventing nuisance alarms.
A patented Range Cutoff (RCO) circuit rejects all microwave targets beyond a preselected range. This unique capability makes Model 390 immune to alarms from objects outside the RCO distance, including large targets such as metal fences, vehicles, trees, trains or aircraft. Model 390 is also equipped with a patented Zero-Range Suppression (ZRS) circuit which reduces the amplitude of close-range targets, preventing nuisance alarms caused by rain, vibration, birds and windblown objects.
KEY FEATURES
- 15 to 61 m (50 to 200 ft) Detection Range
- Advanced Digital Signal Processing For High PD / Low NAR
- Ethernet-Based Setup And Alarm Reporting
- Resistant To Radar Interference
- Range Cutoff Circuit Prevents Alarms Caused By Moving Objects Beyond A Pre-selected Range
- Zero-Range Suppression Circuit Reduces Effects Of Harmless Close-Range Disturbances
- Alarms When Spoofing Attempts Are Detected
- Supports Integration With IP / POE-Enabled Security Devices And Cameras
- Alarm Monitoring Via Form C Relays, INTREPID™ POE Controller Or Third-Party HLI
